产品展示Products    SG    BCA陶瓷刚玉SG微晶陶瓷磨料 blue ceramic alumina 【福建鑫结利 Fujian XJL BCA】
F36
sg1
P50
HP
P240微粉
sem

BCA陶瓷刚玉SG微晶陶瓷磨料 blue ceramic alumina 【福建鑫结利 Fujian XJL BCA】

蓝色陶瓷刚玉、微晶陶瓷刚玉(BCA)是一种以含特殊氧化铝的物质为主要原料,使用Sol-Gel溶胶-凝胶工艺制备的烧结态多晶磨料,可应用于固结磨具以及涂附磨具,并在超硬磨具中有一定的使用。应用于SG陶瓷刚玉砂轮和SG陶瓷刚玉砂带。【福建鑫结利 FuJian XJL BCA】

CA陶瓷刚玉SG磨料 微晶陶瓷磨料 Ceramic Alumina

微晶陶瓷刚玉ceramic microcrystalline alumina 是一种以含特殊氧化铝的物质为主要原料,使用“溶胶-凝胶”Sol-Gel工艺制备的烧结态多晶磨料,可应用于固结磨具以及涂附磨具,并在超硬磨具中有一定的使用。陶瓷微晶刚玉具有独特的显微结构,硬度高、韧性大、自锐性好,在磨削时切削速度快,磨削寿命长,不易烧伤工件,而且能源消耗低。磨削时,由于自身尖锐的棱角分明的结构,因此不断破裂以形成尖锐的点,每个磨粒以其晶体微刃磨削或抛光,以其晶粒进行自锐,保持每个磨粒的锋利性。它具有硬度高、韧性好、磨削锋利、发热量少等特点。特别适用于各种合金钢、淬火钢、工具钢、硬铬、硬铸铁等材料的磨削。

Blue Ceramic Alumina (BCA) is a sintered microcrystalline abrasive made by a sol-gel process with special alumina as the main raw material and mixed with various modified components. BCA can be used in bonded abrasives and coated abrasives, and has a certain application in superhard abrasives. BCA has unique microstructure, high hardness, good toughness, good self-sharpening, fast cutting speed, long life of grinding, low heating not easy to burn workpieces, and low energy consumption. During grinding, due to its sharp angular structure, it is constantly broken to form sharp points. Each abrasive grain is ground or polished with its sharp crystal micro edge, and self sharpened with its grain to maintain the sharpness of each abrasive grain.   It has a wide range of applications, not only grinding under high pressure, but also in fine grinding of various materials, including gear grinding, bearing grinding, crankshaft grinding, roll grindings and so on. It is especially suitable for gringding all kinds of alloy steel, quenched steel, tool steel, hard chromium, hard cast iron and other materials.

品名Product:【微晶陶瓷磨料】蓝色陶瓷刚玉Blue Ceramic Alumina

Datasheet download

型号Model:  BCA

生产厂Manufacturer:福建鑫结利新材料科技有限公司 Fujian XinJieLi New Material Technology Co.,Ltd.

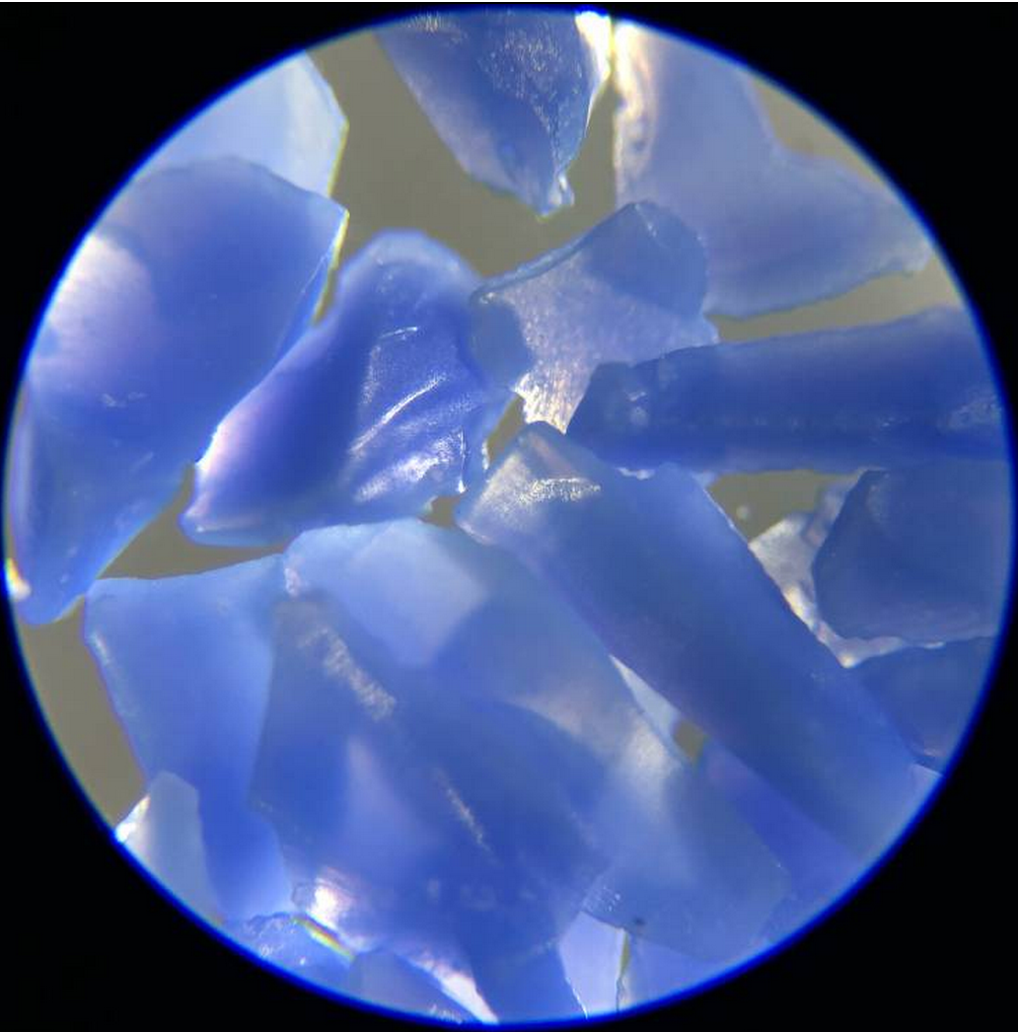

外观appearance
颗粒grain

F36

P50

P50

HP36 (超高堆积密度,超高韧性super high bulk density and high toughness)

TB30+ (比P砂颗粒大,与传统磨料搭配使用于涂附磨具,锋利防堵Larger than P grit , used with traditional abrasives for coating abrasives, sharp and anti blocking)

P240 微粉 micro powder

电镜SEM

商标 trademark



物理性质Properties

颜色Colour

Blue

维氏硬度Vickers Hardness

1900-2200(khf/mm2)

真密度True density

3.90g/cm3

粒度号 Grit No.

(粒度范围可以订制)

16#-220#(F/P )( TB类三角/HF and HP 超高堆积密度 super high bulk density)



F标 堆积密度  bulk density(g/cm3)

F16 F20 F24 F30 F36
1.85-1.97 1.85-1.97 1.83-1.95 1.80-1.92 1.79-1.91
F46 F54 F60 F70 F80
1.77-1.89 1.73-1.85 1.71-1.83 1.67-1.79 1.68-1.80
F90 F100 F120 F150 F180
1.67-1.79 1.67-1.79 1.67-1.79 1.67-1.79 1.67-1.79
F220 F240
1.67-1.79 --

以上为标准堆积密度范围。还可以根据客户要求提供高堆积密度陶瓷颗粒。The above is the range of standard bulk density. High bulk density ceramic grains can also be provided according to customer requirements.

F 和P 粒度标准可以根据客户需求订制。F and P granularity standards can be customized according to customer needs.

优势Advantage:

效率高High efficiency 韧性好、磨损少Good toughness and Less abrasion
使用寿命长Longer service life 自锐性能好Good self-sharpening performance
成本优势Cost advantage 不烧伤工件No work pieces burning

SG磨料、SG陶瓷磨料广泛应用于SG陶瓷砂轮和SG陶瓷砂带(SG陶瓷砂带、SG陶瓷砂轮)。陶瓷刚玉砂轮、陶瓷刚玉砂带、陶瓷刚玉砂布、陶瓷刚玉砂纸、陶瓷刚玉百叶盘\陶瓷钢纸磨片、瓷砖修边砂轮、瓷砖抛光片(用SG部分替代金刚石)。【福建陶瓷磨料、福建陶瓷刚玉SG磨料、福建BCA陶瓷磨料、福建SG磨料、Fujian XJL、XJL BCA、XJL blue ceramic alumina、XJL SG abrasives、福建BCA陶瓷刚玉磨料\china fujian XJL BCA blue ceramic alumina SG abrasives】瓷砖抛光片SG磨料替代金刚石
